Tactacam - Reveal Solar Panel R5 with Built-In Battery

Extend the time between trail-camera visits with the Tactacam REVEAL Solar Panel R5 with Built-In Battery. Designed for REVEAL cellular trail cameras, the R5 combines a larger solar surface, a built-in 5,000 mAh lithium-ion battery, and an adjustable mounting bracket to deliver more efficient off-grid power for long-term scouting setups.

The Solar Panel R5 charges up to 30% faster than the previous Solar Panel V2 and reaches 21% solar conversion efficiency. When connected by barrel jack to a REVEAL X 4.0 or REVEAL Pro 4.0, it unlocks Advanced Insights for battery percentage, charging state, voltage readings, diagnostics, and other power-monitoring information. Shop more Tactacam products or browse our Trail Cameras collection.

FASTER, MORE EFFICIENT SOLAR CHARGING

The R5 uses a larger solar surface and improved charging system to capture more energy in the field. Tactacam rates the R5 at 30% faster charging than the Solar Panel V2, helping reduce downtime and maintenance visits.

BUILT-IN 5,000 MAH BACKUP BATTERY

An integrated 5,000 mAh lithium-ion battery stores power for nighttime operation and cloudy conditions, giving compatible trail cameras an additional energy reserve when direct sunlight is unavailable.

ADVANCED INSIGHTS WITH REVEAL 4.0 CAMERAS

When connected to a REVEAL X 4.0 or Pro 4.0 through the DC barrel connection, the Solar Panel R5 can provide Advanced Insights such as battery percentage, charging state, voltage readings, diagnostics, and panel-performance information. This makes it easier to fine-tune solar-panel placement and monitor power-system health remotely.

WIDE REVEAL CAMERA COMPATIBILITY

The Solar Panel R5 is compatible with REVEAL cameras that use a barrel-jack power connection, including the Pro 4.0, X 4.0, Pro 3.0, X 3.0, Ultra, X-Pro, X Gen 2.0, XB/SK, X, and Gen 1 models. Advanced Insights are limited to compatible REVEAL 4.0 cameras connected through the barrel jack.

FEATURES

• Built-in 5,000 mAh lithium-ion battery
• 30% faster charging than the REVEAL Solar Panel V2
• 21% solar conversion efficiency
• Advanced Insights with REVEAL X 4.0 and Pro 4.0 via barrel-jack connection
• Battery percentage, charging state, voltage, diagnostics, and other power-monitoring data with compatible 4.0 cameras

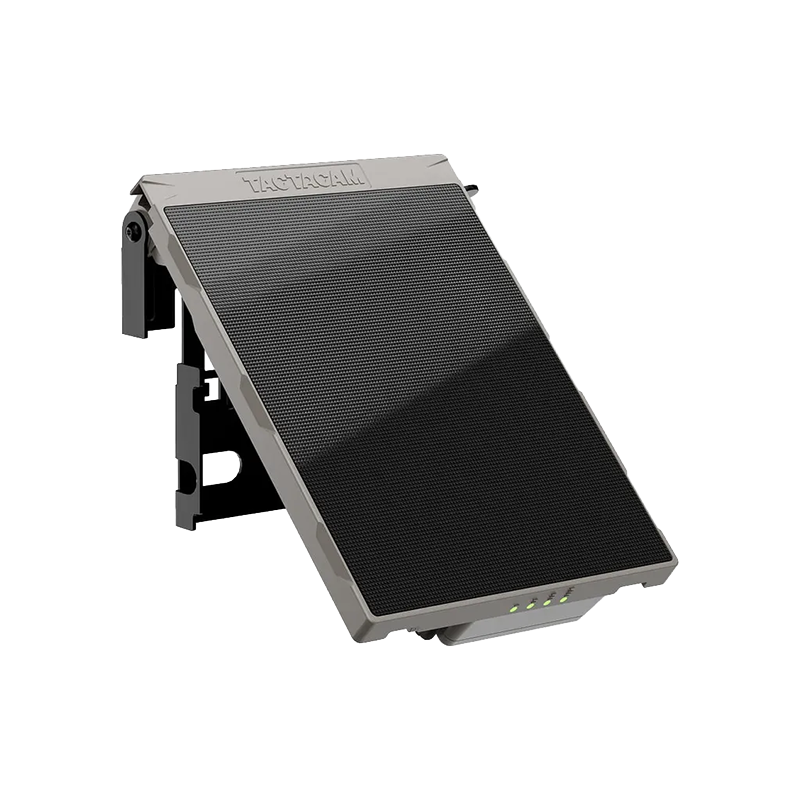

• Adjustable mounting bracket for panel-angle positioning
• Compatible with REVEAL cameras using a barrel-jack power connection
• DC barrel output for trail-camera power
• USB-C charging input
• Designed for reduced trail-camera maintenance and fewer battery-change visits

SPECIFICATIONS

• Model: REVEAL Solar Panel R5
• SKU: RV-EXT-V3
• Built-In Battery: 5,000 mAh at 7.2V lithium-ion
• USB-C Input: 5V / 3A
• DC Barrel Output: 12V / 2A for Gen 2; 7.4V / 3A for Gen 3, Pro 3.0, Defend Cam, X 4.0 and Pro 4.0
• Solar Conversion Efficiency: 21%
• Solar Panel: 12.24V, 4.2W
• Charging Time: 50–120 hours using solar power; approximately 3.5 hours using AC adapter
• Dimensions: 32.5 mm D x 149 mm W x 203 mm H
• Weight: 1 lb. 11 oz.
• Output Plug: DC barrel

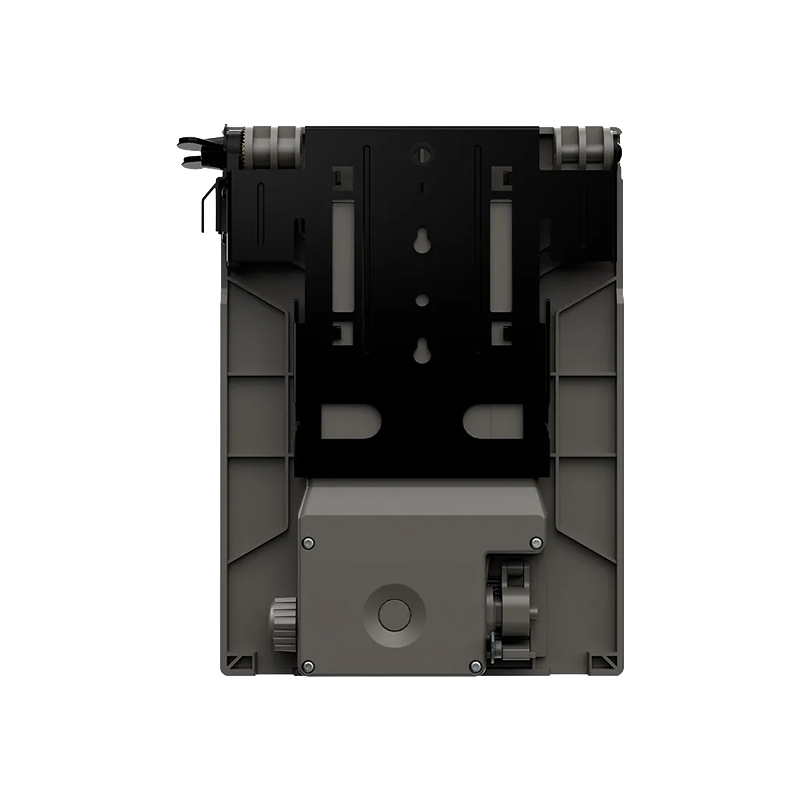

• Mounting: Adjustable bracket
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Operating Humidity: 5%–95%

WHAT'S INCLUDED

• REVEAL Solar Panel R5 with mount
• 1 strap
• 1 USB-C charging cable
• 1 barrel-jack cable with retention clip

TACTACAM REVEAL SOLAR PANEL R5 FAQ

Which Tactacam cameras work with the REVEAL Solar Panel R5?
The Solar Panel R5 works with REVEAL cameras that use a barrel-jack power connection, including the Pro 4.0, X 4.0, Pro 3.0, X 3.0, Ultra, X-Pro, X Gen 2.0, XB/SK, X, and Gen 1 cameras.

What are Advanced Insights on the Solar Panel R5?
When the Solar Panel R5 is connected by barrel jack to a REVEAL X 4.0 or Pro 4.0, Advanced Insights can provide information such as battery percentage, charging state, voltage readings, diagnostics, and other panel-performance data.

Does the Solar Panel R5 have a built-in battery?
Yes. It includes a built-in 5,000 mAh lithium-ion battery that stores power for nighttime use and cloudy conditions.

How much sunlight does the REVEAL Solar Panel R5 need?
Tactacam recommends placing the panel where it can receive at least four hours of sunlight per day for optimal performance.

Will the Solar Panel R5 charge AA batteries inside my trail camera?
No. The Solar Panel R5 does not charge standard AA batteries. Tactacam states that it can charge compatible FlexPack R5 or R10 modular batteries.

How fast does the Solar Panel R5 charge?
Tactacam rates the R5 at 30% faster charging than the previous Solar Panel V2. Charging time is approximately 50–120 hours using solar power or about 3.5 hours using an AC adapter.
